2024 S1V4TR 10 th ELECTRIC 2WD Stadium Truck Kit
Updated Features:

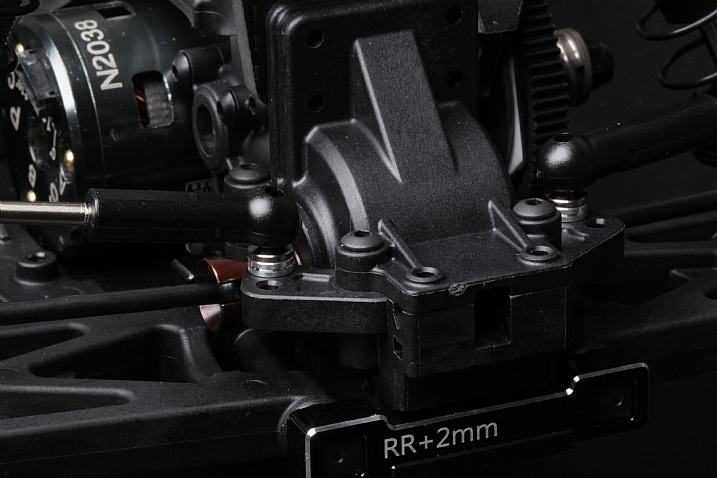

1-Quick access diff,
2-Low CG chassis,etc.

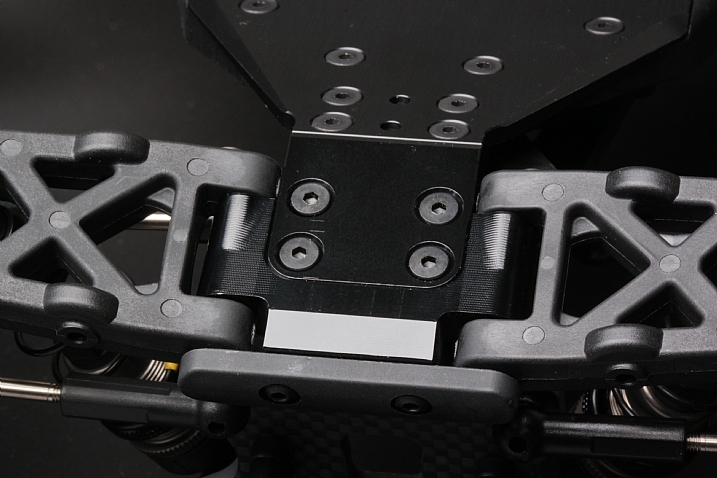

3-7 degrees kick-up Front Alu Lower Swing Arm Mount,
4- New Front Rear Carbon Shock Tower
5- Carbon Quick Release (Battery Brace)
6-Ti- Nitride Shock Shaft(12.8mm big bore threaded alu shocks)
7-Hard Steel Turnbuckle
Specifications:
•Scale: 1/10
•Type: Stadium Truck
•Drivetrain: 2WD
•Surface: Off-Road
•Power Plant: Electric
•Completion level: Unassembled
•Length: 390mm
•Width: 330mm
•Height: 155mm
•Wheelbase: 278mm-282mm
Includes:
2024 S1V4TR 10 th ELECTRIC 2WD Stadium Truck KitTeam Kit
Needed to Complete:
•Steering servo
• 2-channel transmitter & receiver
•1:10 scale 540-size electric motor & ESC
•2S LiPo battery
• Polycarbonate Stadium Truck body
•Paint for polycarbonate body
•Tires
•Assembly Tools & Tires CA glue
•Metric 5.5mm, 7.0mm, 8.0mm Nut Driver



The essentials:
94500063 PR S1V4 Aluminum Rear Upper Arm Mount (1)
71400702 Aluminum Rear Hub Carrier (A) (2)
81430106 front Rear Steel Shock Stand off Set (1)
66481256 CNC Aluminium Steering Linkage Set
71530016 2021 PR 1/10 Type R Front Shock Spring Set (10)
71530026 2021 PR 1/10 Type R Rear Shock Spring Set (10)
55430086 PR RACING 25T Pitch 14mm Aluminum Servo Horn
66481496 Front Anti-Roll Bar (1.2mm-1.3mm-1.4mm) (1)
66481562 Rear Sway Bar set (1.2+1.3+1.4mm) (1)
71400705 PR S1(FM) V4R 3mm Carbon chassis about 84g(1)
66480456 +3 Degree Aluminum Lower Swing Arm Mount (1)
71400707 PR S1FM V4-R Aluminium Chassis 2.5mm (1)
Useful options:
66402687 S1V4 Competition Ball Differential+1.3mm (1pr)
66402220 PR S1 V4 Aluminium Steering Block (0 mm) (1pr)
66402230 PR S1 V4 Aluminium Steering Block (-1mm) (1pr)
91400039 PR S1 V4 Aluminium Caster Block 3 Degree (1pr)
66480476 0 Degree Aluminum Lower Swing Arm Mount
66480536 7 Degree Lower Swing Arm Mount (+5mm) 66g
55430076 Shock Seal and Cartridge Set For Type R (1)
81430107 PR Shock Top Bushing (Alu)
Refine your setup:
17430046 12.8mm Machined Shock Pistons 1.5mm x 3 Hole(4)
17430056 12.8mm Machined Shock Pistons 1.4mm x 3 Hole(4)
17430066 12.8mm Machined Shock Pistons 1.6mm x 3 Hole(4)
17430076 12.8mm Machined Shock Pistons 1.7mm x 3 Hole(4)
17430096 12.8mm Machined Shock Pistons 1.8mm x2 Hole (4)
17430116 12.8mm Machined Shock Pistons 2.0mm x2 Hole (4)
66400556 PR Racing 48P Pinion (3.17mm ID) (21T) (1)
66480096 PR Racing 48P Pinion (3.17mm ID) 22T (1)
66480106 PR Racing 48P Pinion (3.17mm ID) 23T (1)
66480116 PR Racing 48P Pinion (3.17mm ID) 24T (1)
66480986 PR Racing 48P Pinion (3.17mm ID) (18T) (1)
66480996 PR Racing 48P Pinion (3.17mm ID) (19T) (1)
66481006 PR Racing 48P Pinion (3.17mm ID) (20T) (1)
66480576 73T Spur Gear (For S1 ) (1)
66480586 75T Spur Gear (For S1 ) (1)
66480596 77T Spur Gear (For S1 ) (1)
66480606 83T Spur Gear (For S1 ) (1)
31430016 PR P3 Shock O-Rings(Red) V2 (
31430017 PR P3 Shock O-Rings V4 Transparent (
68440093 PR S1 V4 12mm (-1.2mm) Clamping Wheel Hex Set
68440094 PR S1 V4 12mm (-0.6mm) Clamping Wheel Hex Set
68440095 PR S1 V4 12 x6mm Clamping Wheel Hex Set (2)
90440020 Wheel Hex -12mm x 7.2mm (2)
90440030 Wheel Hex -12mm x8.2mm (2)
90440040 Wheel Hex -12mm x 9.2mm (2)
87400097 1/10 Rear Shock Flip Screw Set
Bodywork, rims, tools:
67410076 PR ST 1 Wheel Black(2)
67410086 PR ST 1 Wheel White (2)
67410096 PR ST 1 Wheel Yellow (2)
67410436 2020 PR ST1 V3T body+ Window sticker + sticker (1)
67400116 PR ST1 Wing (1)
23440360 PR RACING Short Nut Driver (5.5mm) (1)
02640235 PR RACING Stainless Curved Lexan Body Scissors (1)
02640245 PR RACING TiNi Coated Stainless Curved Scissors (1)
